(Auto-) Guiding Light

The moment I had been waiting for now for months was finally on me. I got my autoguider, guide scope, dovetail, and finally my dew heaters as well. The 2 issues that plagued me the most – tracking and dew – would finally be vanquished!

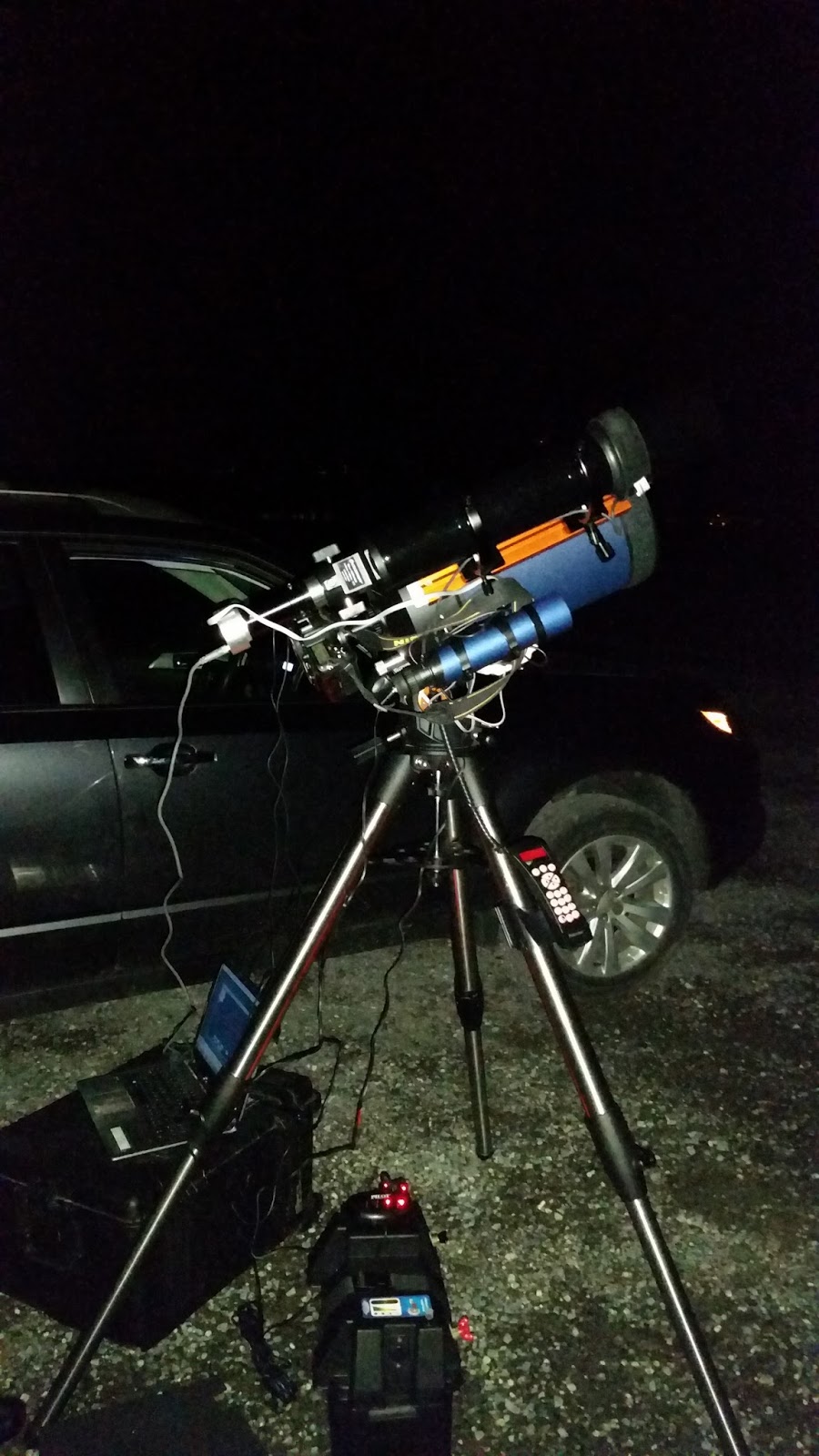

My rig all set up with all its wiry glory

I headed out to my regular spot in an industrial park just outside of town and got myself set up. The first issue was cables. So many cables to deal with. Most were dangling around (I know, bad), but there was no wind, so at least that wasn’t affecting my imaging.

On a side note, I’ve bought some velcro cable ties, so next time that won’t be an issue. But needless to say, for this evening, I had to deal with this tangle of wires the best I could. It wasn’t pretty, but it worked. I’ve got a better setup planned for next time that will result in the laptop sitting in the warm car with me.

It took a lot longer than it typically takes me to set up this new rig. There was so much to connect. In my head, I knew what needed to be done and it isn’t terribly complicated. But actually doing it always presents some challenges in themselves. I did manage to get everything connected the first time without issues though. It just took me a lot longer to get it all sorted out than it typically does. Finally, I was polar aligned, the scope was aligned with 2 stars + 4 calibration stars. I got my focus on Vega using Backyard Nikon, and I was ready to fire up PHD and test out my new autoguider.

NOISE!!!

And that’s when things got interesting / confusing. I had read the instruction manual that came with my Orion StarShoot AutoGuider. I’d played with it at home in day light to get familiar with it, but I wasn’t prepared for the screen full of noise that PHD presented me. I was baffled. I saw no starts. All I saw was a screen full of noise. I played with the camera gain, gamma adjustments, etc, and still couldn’t see anything. I opened up the manual and read it again, but I couldn’t figure it out. I was confused and didn’t know what to do.

So I made a quick post to the Amateur Astrophotography Magazine Facebook group. I knew there would be someone that could help me out. And sure enough, responses started pouring in almost immediately. With some excellent advice from other more experienced imagers such as Mitchell Tubbs (East of Jupiter), Bubba Daniels, David Pointer, and Phil Quandt who use autoguiders, I finally managed to get my autoguider working. Thanks for the tips, gentlemen. You got me off on the right track!

It turns out my primary issue was that my exposure times were too short. I guess while playing around with PHD at home, I had set the exposure time to 0.2 seconds and left it there. That really wasn’t long enough of an exposure to register images of the stars or even to get focus with in the first place. Once I managed to acquire an image with the autoguider using Vega as a target, I managed to get my guide scope in focus. Once I had that, things started going smoothly at last. Once PHD calibrated, I was good to go.

My tracking graph in PHD was a little erratic. Not terrible by any means. My images did turn out quite well and my stars are perfectly round, so it looks like everything is within good tolerances, but the tracking wasn’t quite as smooth as I’d seen on other peoples’ tracking graphs. I’m not sure what the exact cause of this is. My mount was properly polar aligned, or at least I think it was. I’ll have to be more careful aligning it next time to see if that helps

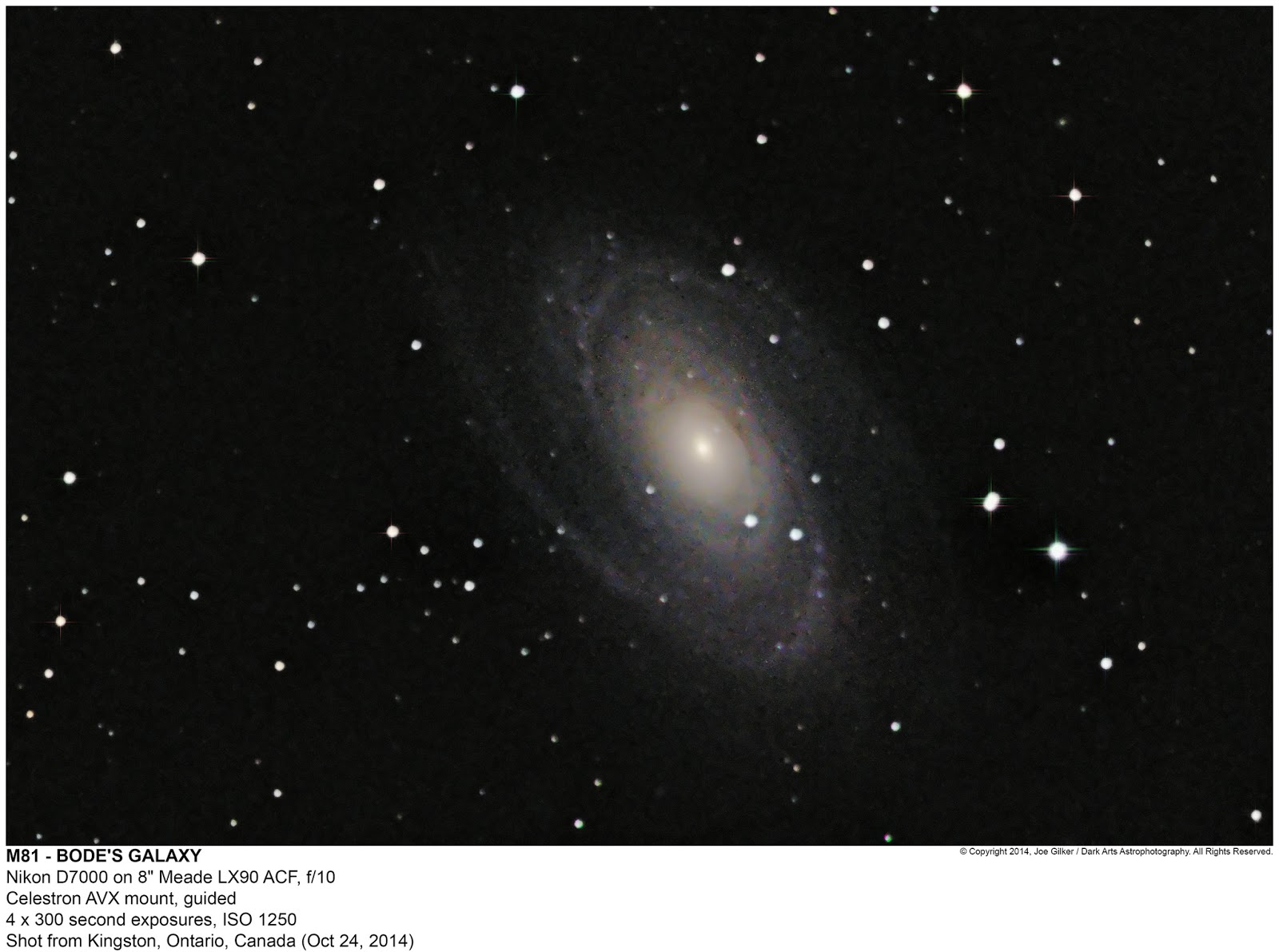

My first order of business was to test out the tracking now that I had the autoguider. Previously, I’d been unable to track using this scope at f/10 for more than 90 seconds without getting some trailing. So it was time to put things to the test. The first target of the night was M81 with 300 second exposures. I’d shot this target before using this scope. However, I had shot it at f/6.3 using my focal reducer and had shorter exposures.This time, I wanted a higher power view of the galaxy solo. I got over an hour of data on it, but for some reason, neither DeepSkyStacker nor MaximDL will read about half of the exposures. I’m not sure what the issue is there, as they should all be good. But in any case, for the test run, it worked out well. I got a fairly decent view of it. Nowhere near as good as I would have hoped, but since this was really just a test for my tracking, I’m pleased with the result.

Flickr link: https://www.flickr.com/photos/crunchmeister/15005613303/in/photostream/

I’m certainly not disappointed in the result. It doesn’t have as much detail as I would like, but that’s the down side of imaging at a high focal ratio. You need a lot of good, clear exposures to create a final image that doesn’t have data gaps. M81 happens to be bright enough that I managed to get a good image despite only having 20 minutes of data.

The second target for the night was one I had never shot or seen before – M1, the Crab Nebula. I’d been wanting to get a shot of this one for a while now, and I figured this was as good a time as any to do it. I was hoping for something better, but unfortunately, it seemed my focus was off. Normally I try to refocus between targets, but I didn’t this time. I got 8 shots of it, but 6 of them were quite blurry and didn’t make it into the final image. I didn’t think it was quite good enough to post up on my Flickr page, but it was good enough to at least share on my Facebook page as a “failed attempt”.

Facebook link: http://on.fb.me/1zcmxgj

I had originally intended on getting more of M1 than I did, but realized that Orion had risen. And my ADD kicked in, making me want to switch targets. All in all, considering my focus was off on M1 and I didn’t realize it, that wasn’t a bad idea. My dilemma was now whether to shoot M42, the Horsehead Nebula, or Flame Nebula. All 3 are amongst my favourites. Having already managed good shoots of M42 and Flame in the past, I decided I’d turn the light gathering capability of my scope on the Horsehead, since I had never gotten an image of it that was to my satisfaction.

Flickr link: https://www.flickr.com/photos/crunchmeister/15439212238/in/photostream/

The detail that I managed to pull out of this left me pretty impressed. Like my image of M81, there’s a grainy finish. It’s not so much due to noise, but rather the lack of data. While the Horsehead is clearly visible with bright red shades, there are a lot of gaps in my data due to the short integration time. A mere 30 minutes of exposure time at f/10 is not enough to capture this dim object and all the subtle gas clouds surrounding it. But still, I was very impressed. In previous shots of this object, I had actually been shooting the Flame Nebula with my camera and a 300mm lens or with my widefield f/5 refractor. While I managed to capture the presence of the Horsehead, detail on it was never clear. This time, I clearly captured it, despite the “noisy” appearance. Far from perfect, but the level of detail here is impressive.
Lessons learned

While the imaging from this session is far from what I’d call spectacular, it was a successful evening out nonetheless. I learned to properly set up and use my new equipment, which is always my goal the first time I’m out with new gear. But the real successes of the evening were the lessons I walked away with.

Autoguiders are great!  They require some extra work to set up, but once set up properly, they’re essential for long exposure photography and will do a wonderful job of keeping your mount tracking.

Take extra care to polar align the mount as accurately as possible, including doing a second polar alignment after my 2+4 mount alignment is complete.

F/10 is a difficult ratio to image at, especially when you have a 2m focal length. I now know I need a lot more integration time to get clear images out of my setup at f/10, Chances are I’ll likely stick with f/6.3 using my reducer for most of my imaging. It will be a lot more forgiving and will allow me to get more complete images in less time.

Take the time to re-focus between targets to ensure good images. Had I done it in this session, I would have had a semi-decent image of M1.

So all in all, I’m pleased with the outcome of this session. I quite look forward to heading out again at the first chance I get to put this setup to the test again.

So until next time, clear skies and keep your eyes to the sky.

Learning From My Blunders

A while back, I wrote a blog entry about the issues I had with my Meade LX90 mount. Despite being sent back to Meade for repair (at great expense), the mount still didn’t work right. I made the decision to remove the optical tube from the LX90 fork mount and mount it on my Celestron AVX equatorial mount so I could track properly for long exposure photography.

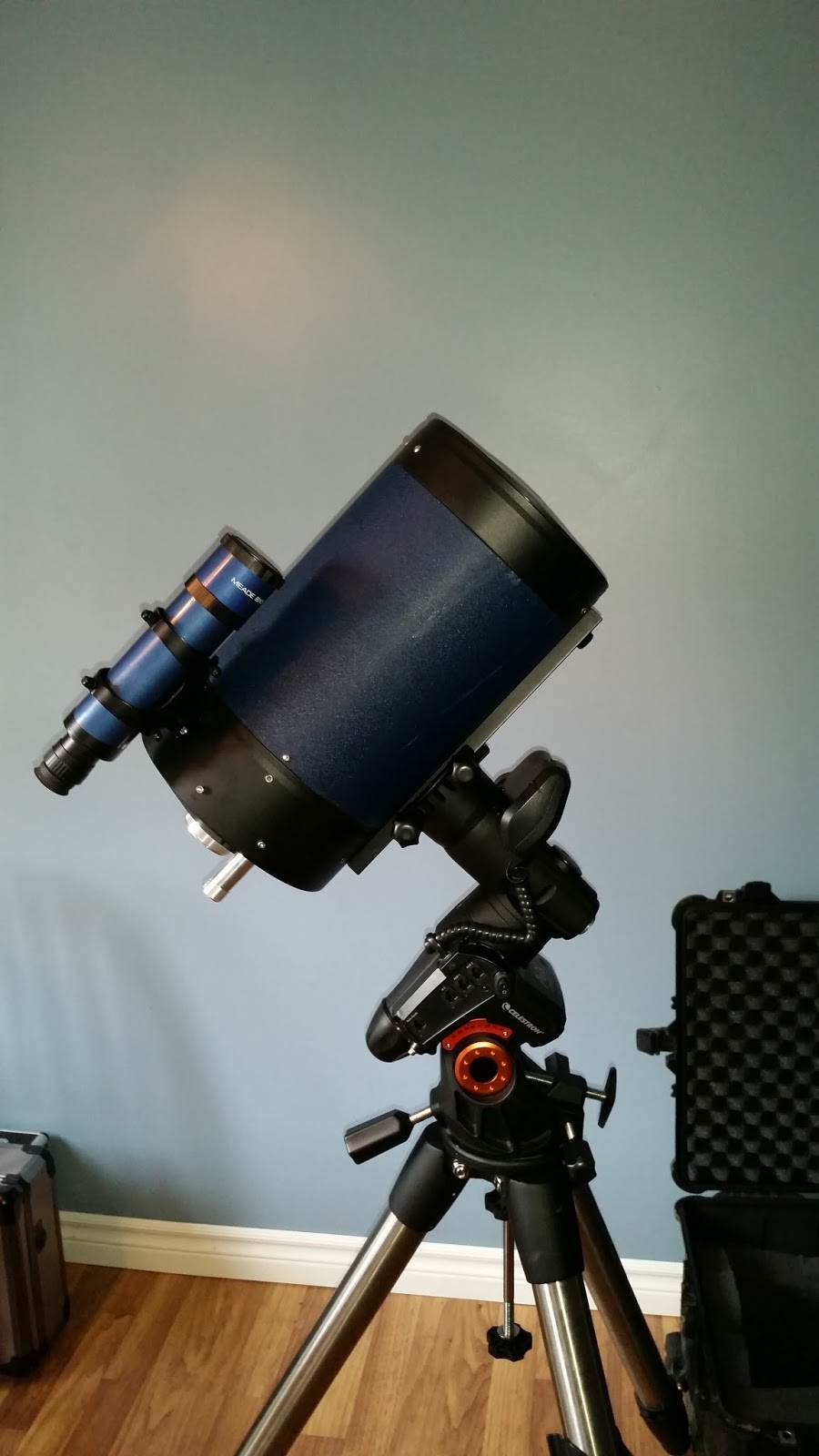

LX90 mounted with tube rings

I made this decision based on a bunch of stuff I read in various forums about people who had “deforked” their LX90 and LX200 tubes and mounted them on equatorial mounts. Based on what I read, I concluded I had 2 options to do this. The first was using a dovetail plate, and the second was using tube rings. Normally, Schmidt Cassegrains use dovetails, but I managed to get my hands on some inexpensive tube rings made for an 8″ reflector, so I went that route. I figured it would be easy to attach a short dovetail to the top of the scope for a guide scope or other accessories, so it would be very convenient. And this assumption was correct.

And it worked great. The first couple of times I went out observing I concluded that I had make a great choice. However, I soon realized the error of my ways. For visual observation, this wasn’t an issue. The tube was perfectly balanced. However, when it came to astrophotography with my DSLR, the weight of the camera on the back of the scope threw off the balance of the tube completely. And there was no way to move the tube forward in the rings to balance it. I still managed to take pics with it this way, and have been for a while, but I now know it’s less than ideal. When I made my decision, I hadn’t taken the balance issue into account. The accounts I read on other forums of people using tube rings were for visual observation, which was perfect. But for photography where a lot of stuff is usually attached to the telescope, this just wouldn’t do.

Now that I’ve started using my LX90 for photography, I’ve come to see how its long focal length affects tracking. With my 120 mm f/5 refractor, I can easily get 3+ minute exposures while maintaining pinpoint accuracy on my stars.  But the LX90 is a completely different beast. I’d never done more than 30 second exposures using that scope. I realized that even with accurate polar alignment, 45-60 seconds was pretty much the maximum I could manage before seeing star trails. Using my 0.63x focal reducer helped and I could track up to 90 seconds. But anything beyond that was useless. And with such a high focal ratio, I need to be able to get at least 3 minute exposures to get decent images. And I’m sure that the balance issues I’m having with my tube play a role in the tracking errors as well.

In order to increase my tracking accuracy, I purchased a guide scope and autoguider camera. The guide scope is a nice 80 mm Guidescope Package from Celestron. This includes an 80 mm, f/7 refractor and a set of  125 mm tube rings. This package attaches to the main tube or rings via a CGE type dovetail plate. Attached to this is an Orion StarShoot AutoGuider camera.

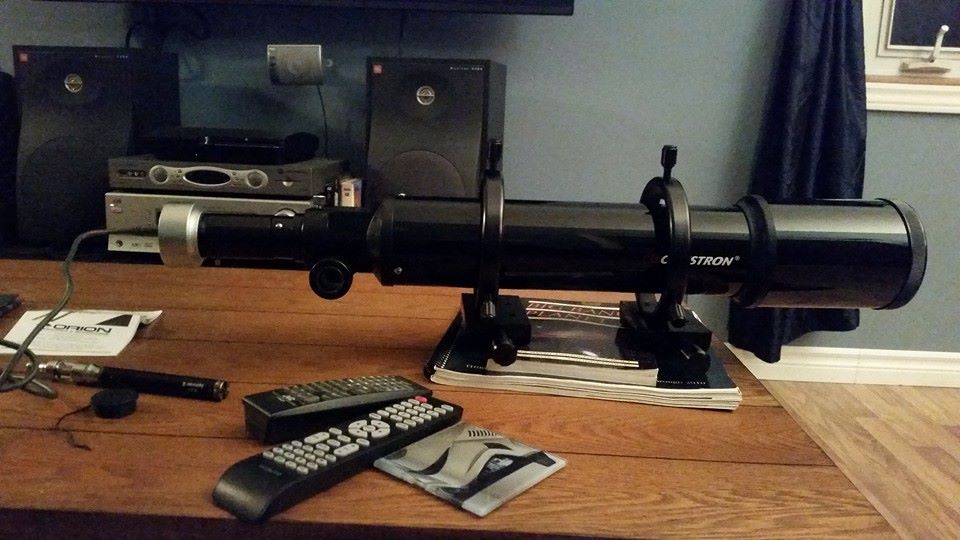

Celestron guide scope with Orion StarShoot AutoGuider attached

I could mount this on my tube rings, but realized it would throw the balance off even more, so the situation is less than ideal. In the end, I really didn’t have a choice. I had to get the proper dovetail plates, both to attach my scope to my mount, and to attach my guide scope to my optical tube. Otherwise, using the rings would introduce even more balancing issues. So I had to lose the tubes and do this right.

LX90 mounted on Losmandy dovetail

So I placed orders for a Meade-compatible dovetail mount from Losmandy and the Celestron CGE dovetail plates. Yesterday, I received my Losmandy plate. Installation was dead simple. I had to remove 2 of the screws from the telescope tube, align the dovetail, and insert 2 longer screws provided with the dovetail.

Now balance is restored. I can move the OTA forward as far as necessary to balance it with the camera attached. Another advantage is those 8″ die cast tube rings are heavy. They added about 6 lbs to my set up. Removing them and replacing them with this lightweight aluminium dovetail makes my overall load much lighter.

The Celestron AVX mount is solid, but only designed for a maximum payload of 30 lbs. Ideally, one wants to keep the weight at about 50% of the mount capacity for optimum performance and minimal stress on the motors and gears. The OTA by itself weighs 14 lbs. The camera adds another 1.5 lbs or so, and the guide scope and rings are 7 lbs combined. So altogether, I’m riding about 22 lbs of gear on my mount, which is clocking in at 73% of the mount’s maximum load capacity. The extra 6lbs from the large tube rings would have put me at a very uncomfortable 28 lbs. Add to that the imbalance and I don’t think even the autoguider setup would have been able to save me and keep the scope tracking properly, let alone the undue stress I would have been putting on the gears and motor on the declination axis. This was really the only option that I had to properly mount my system.

So the moral of this story is simple – before doing something like this, thoroughly do your research and consider options carefully. I now have a set of 8″ tube rings that are useless to me (for now) as a result of this blunder. They were reasonably cheap, but I still could have saved this money had I properly considered what I was doing rather than just blindly choosing to do this.

So until next time, keep your eyes to the sky. Clear skies!
